Perseverance AutoNav Avoids a Boulder

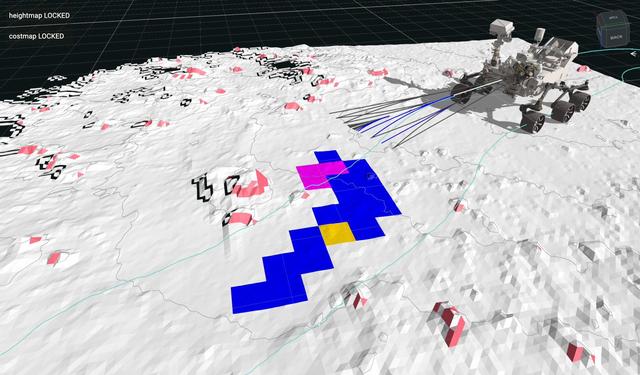

This animation is a playback of data recorded by NASA's Perseverance Mars rover during an autonomous drive on July 15, 2023, the 854th day, or sol, of the mission. During this drive, the rover identified and navigated around the 14-inch (35-centimeter) rock seen at center-left. The self-driving autonomous navigation system, AutoNav, allows the rover to autonomously re-plan its route around rocks or other obstacles on its way to a pre-established destination. Engineers driving the rover at NASA's Jet Propulsion Laboratory in Southern California use visualization software to plan how the rover moves around on Mars and to evaluate its performance. The lines seen emanating from the front of the rover are 20 feet (6 meters) long and indicate the paths the rover is evaluating for safety in real time, while driving. Lines that turn blue show where the rover identified a "wheel drop" hazard – where a wheel could drop more than 14 inches (35 centimeters). Magenta lines indicate where the rover saw a belly pan clearance issue – where a terrain feature could get too close to the belly pan underneath the rover. The surrounding white terrain is a digital elevation model that the rover creates onboard using navigation camera images. The animation has been sped up compared to real time. A key objective for Perseverance's mission on Mars is astrobiology, including the search for signs of ancient microbial life. The rover will characterize the planet's geology and past climate, pave the way for human exploration of the Red Planet, and be the first mission to collect and cache Martian rock and regolith (broken rock and dust). Subsequent NASA missions, in cooperation with ESA (European Space Agency), would send spacecraft to Mars to collect these sealed samples from the surface and return them to Earth for in-depth analysis. The Mars 2020 Perseverance mission is part of NASA's Moon to Mars exploration approach, which includes Artemis missions to the Moon that will help prepare for human exploration of the Red Planet. Animation available at https://photojournal.jpl.nasa.gov/catalog/PIA26073
